On-screen readings statistics High, Low, Average,Standard Deviation, view all readings
Bluetooth connectivity

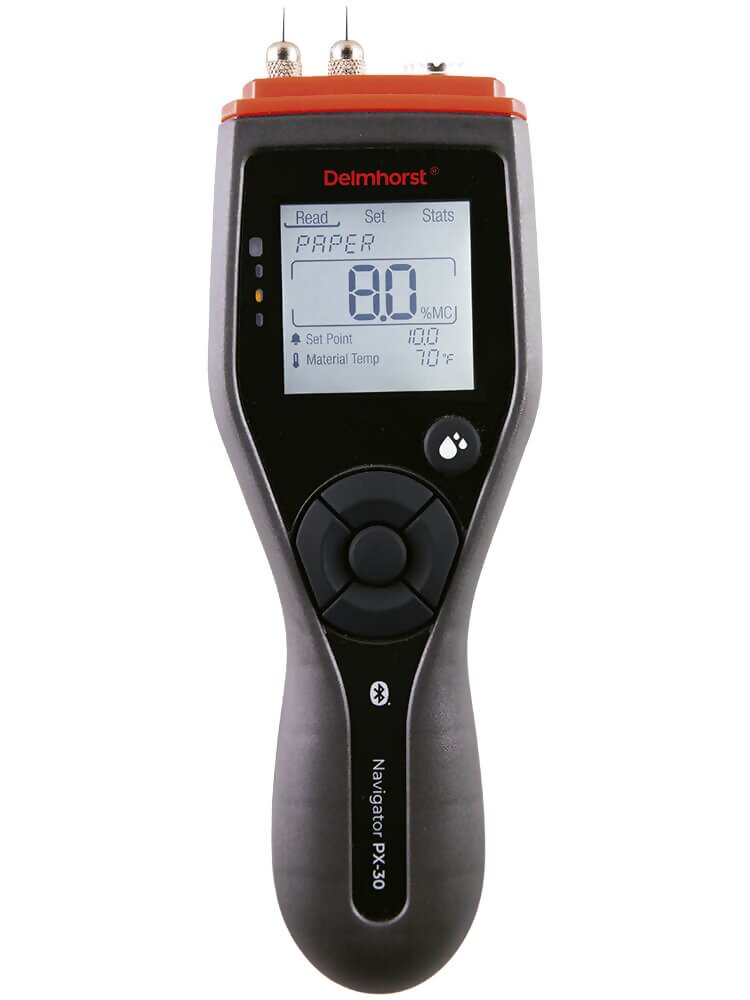

The Delmhorst PX-30 Moisture Meter for Paper is the latest in the new NavigatorTM family of moisture meters from Delmhorst. Uniquely designed for use in the field, theDelmhorst PX-30 Moisture Meter for Paper features a dashboard-like display that is easy to read under most conditions, and large, easy to use navigation buttons.
With the Delmhorst PX-30 Moisture Meter for Paper, the contact pins mounted on the top of the meter are used for making direct contact with the material. Various external electrodes are also available for specific applications. The Delmhorst PX-30 Moisture Meter for Paper is especially useful for testing paperboard, corrugated stock, and paper cores and tubes. They are ideal for QC personnel, buyers, and salespeople.
The Delmhorst PX-30 Moisture Meter for Paper includes Bluetooth, enabling connection to the Delmhorst EDGE app with customizable settings and the ability to share the data from anywhere.
Kit Contents
Delmhorst PX-30W/CS Moisture Meter For Paper- Delmhorst PX-30 Moisture Meter for Paper
- Small Carrying case
| |  |

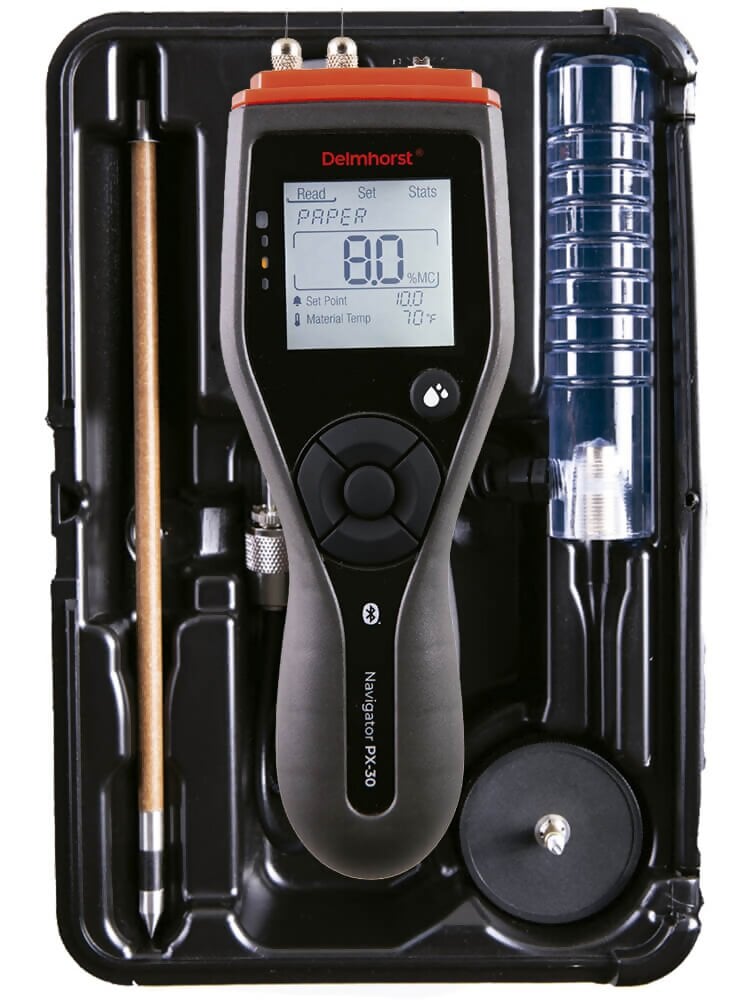

Delmhorst PX-30/P01 Moisture Meter For Paper- Delmhorst PX-30 Moisture Meter for Paper
- Larger Carrying Case to fit an Electrode
- *Electrode & Prod Not Included
- *Electrode & Prod Sold Separately
| |  |

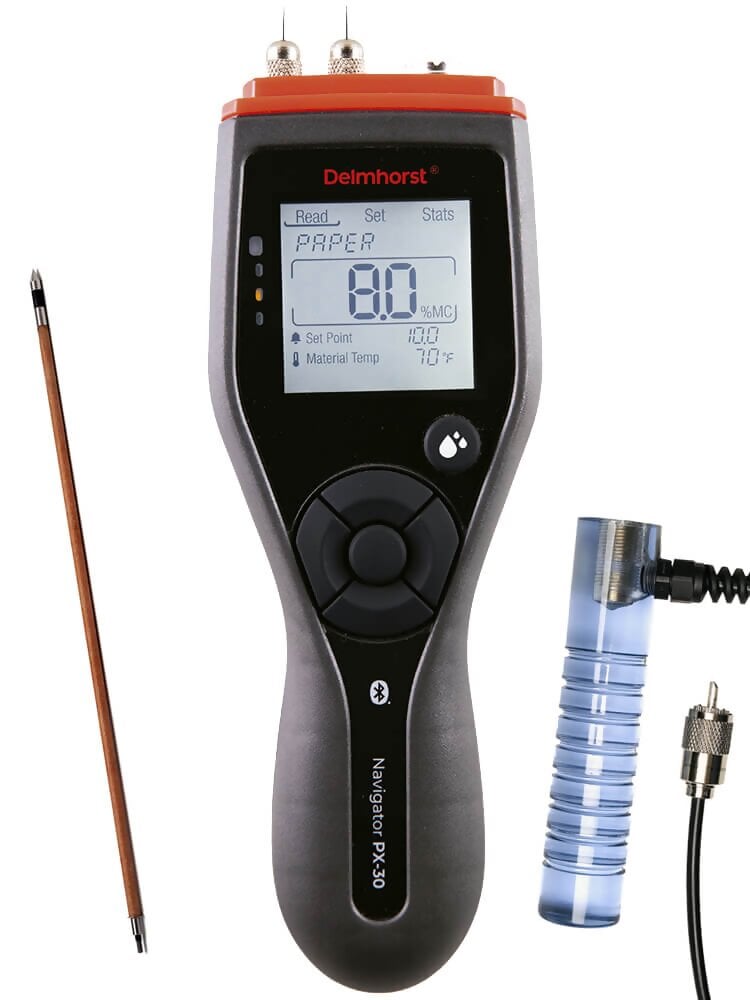

Delmhorst PX-30/P02 Moisture Meter For Paper- Delmhorst PX-30 Moisture Meter for Paper
- H-4 handle
- 830-2 10" prod
- Larger Carrying Case
| |  |
Features
- Large, custom display with auto backlight easy to read under all conditions
- On-screen readings statistics High, Low, Average, Standard Deviation, view all readings
- Moisture Range:
- 4.3%-18% MC for paper (kraft paper calibration)
- 5%-40% for baled scrap paper
- 0 - 100 reference scale for obtaining relative moisture levels on other materials without calibration
- Bluetooth connectivity
- Color-coded LEDs adjustable through EDGE app
- Alarm set point - alerts to user-selected MC level
- Internal calibration check
- Low Batt warning with audio
- Auto off timer - set to 1m, 4m, or 10m
- Compatible with existing Delmhorst prods and electrodes (see below)
The Delmhorst EDGE app offers:
- Timestamp and geotag
- Data export to .csv format
- Save unlimited readings
- Customized LED ranges
Specifications
| Power | 2x AA batteries |
| QR code | On meter for easy access to support materials and meter registration |
| Size | Meter only - 8.65in x 2.85in x 1.55in (2.2mm x 72mm x 39mm) |
| Weight | Meter only - 0.4.5oz (1.3g) |
| Hard plastic | Carrying case included |
| Warranty | 2-year limited warranty on manufacturers defects; bonus 3-month extended warranty with on-line registration |
Eletrodes
Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

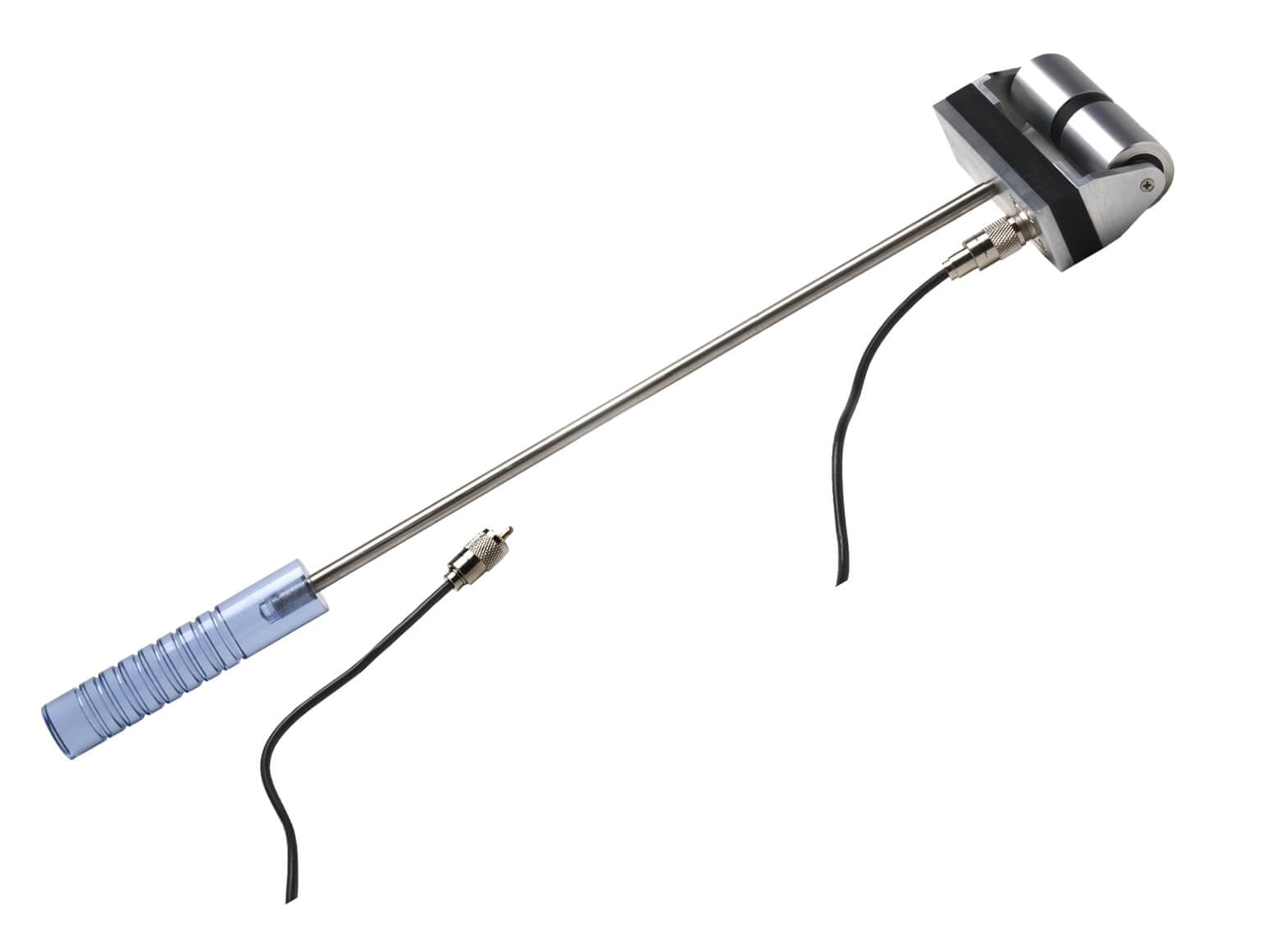

12-E - Double roller type for measuring moisture content on a moving web
|  |

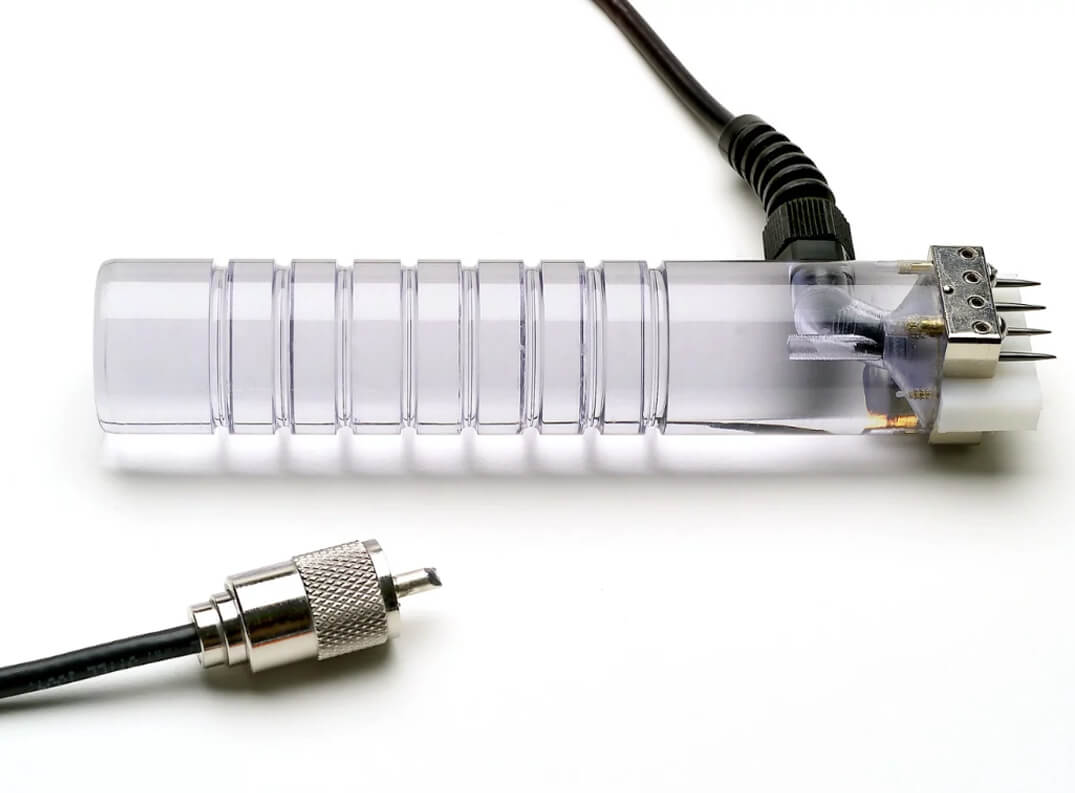

15-E - Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block.
|  |

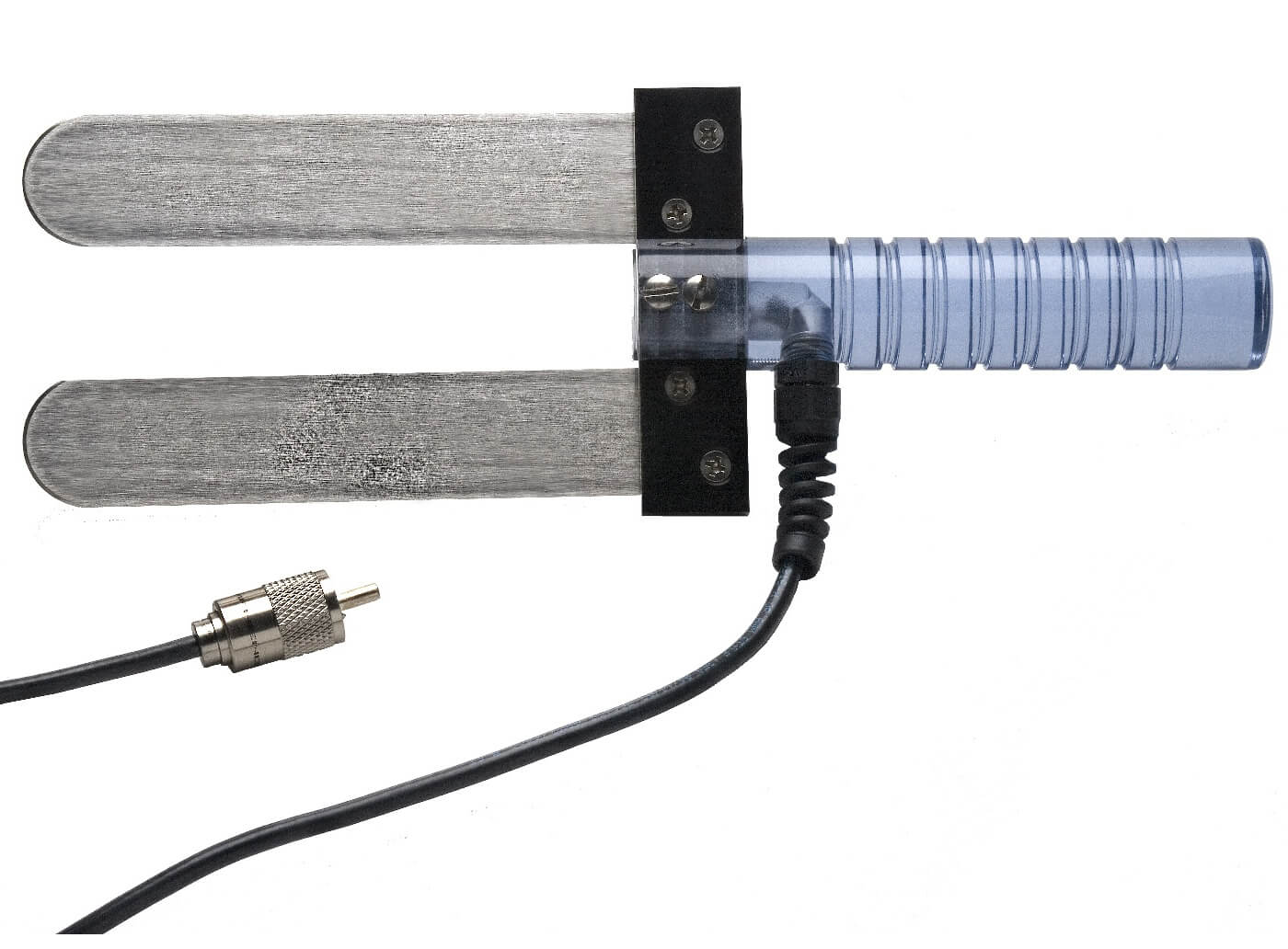

19-E - Blade type electrode for measuring of paper on skids. Blades are 5" long. Longer blades available on special order
|  |

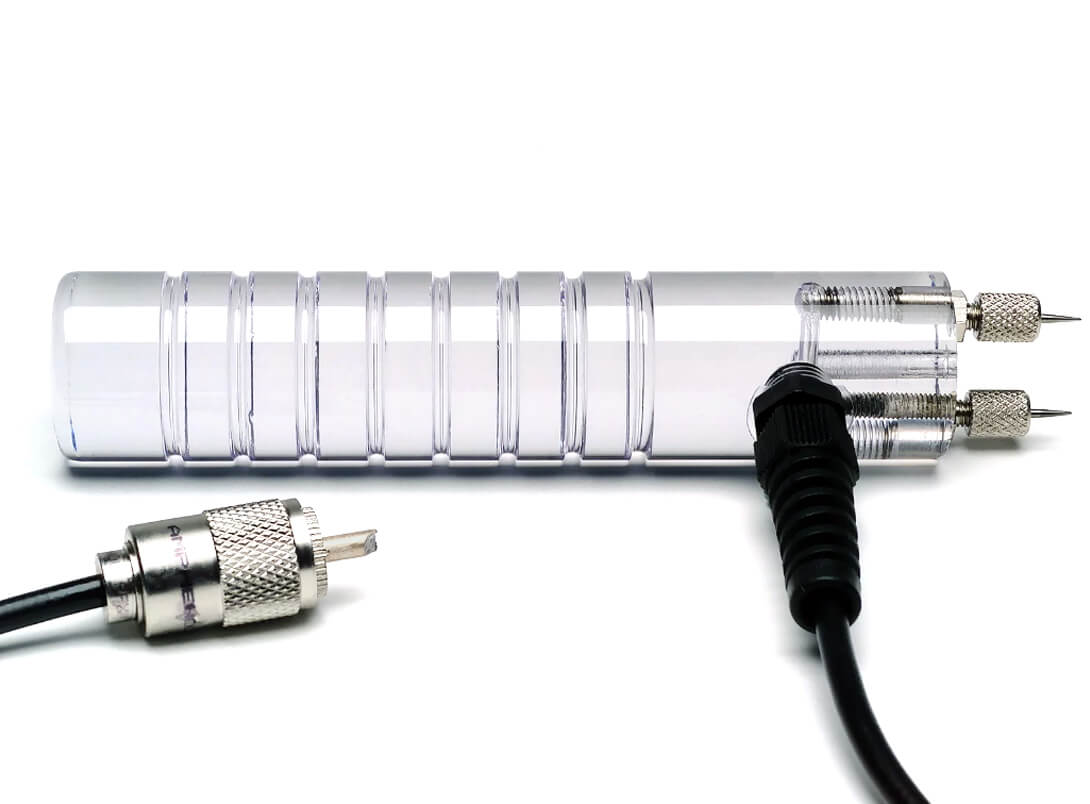

2-E Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications - Home inspector:use on wood joists and drywall.
- Paper producer:use on curved surfaces such as cardboard and paper tubes.
- Woodworker:use on timber, poles, and veneer/
2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32 length and 11/16 penetration. |  |
43-E - Clamp type for testing thin sheet stock. The sample tested is compressed between two smooth discs.
|  |

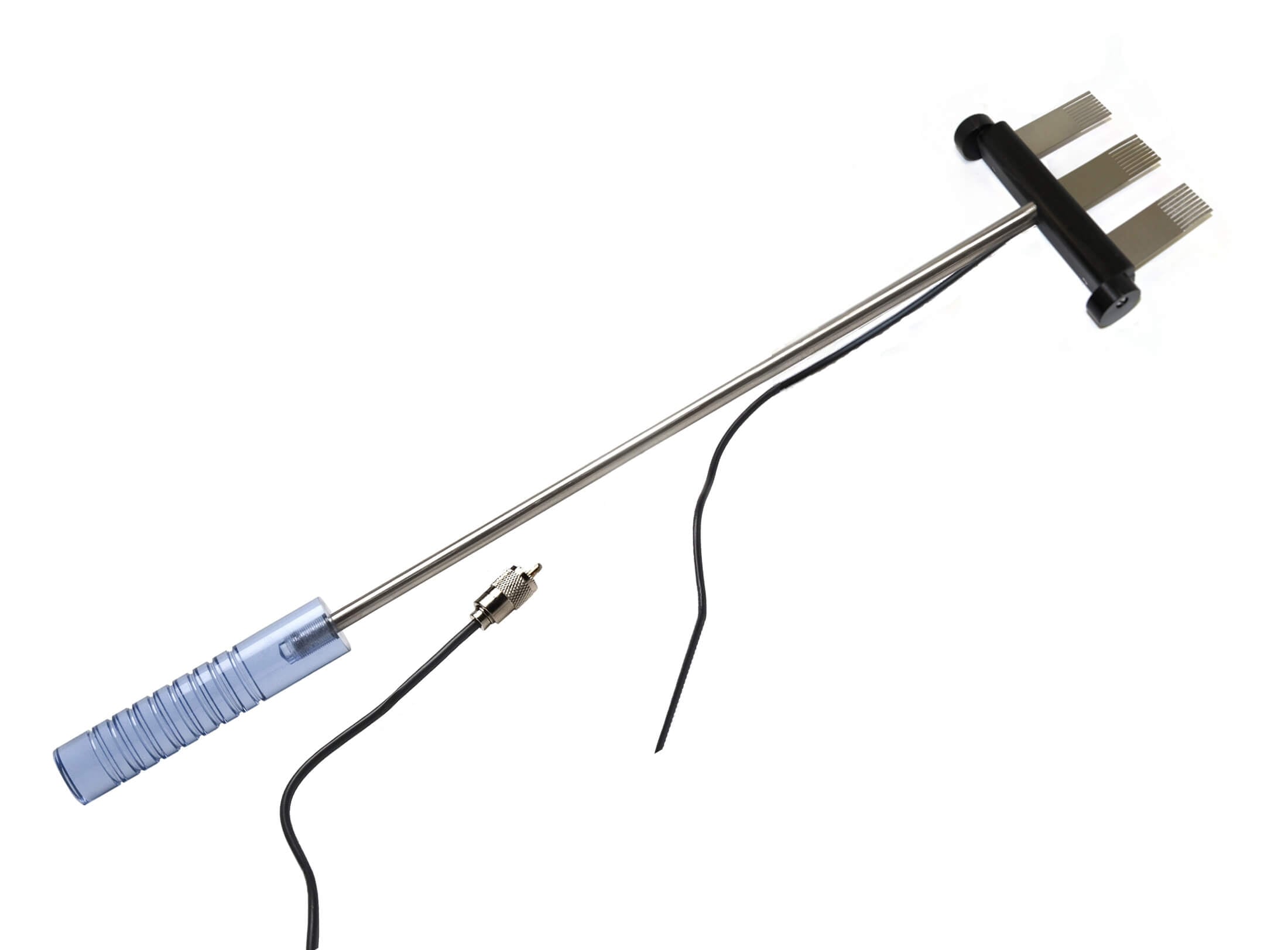

55-E- Leaf type for measuring moisture content on a moving web or roll. Can be used with a portable unit or for stationary installation
|  |
| 830 Series Prods for testing standard and high density bales (requires H-4 Handle). Available as: - 830-2 10 prod
- 830-3 18 prod
- 830-4 36 prod
- 830-5 12 for hops
|  |

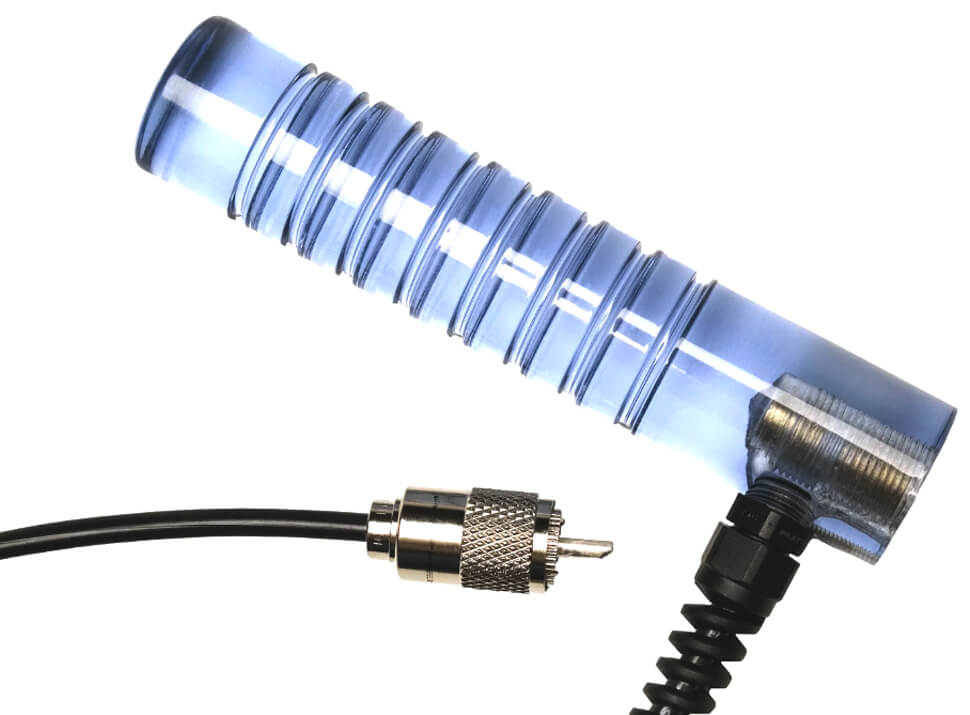

| H-4 Handle Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the meter casing |  |
