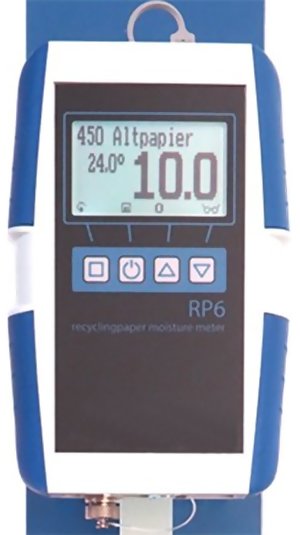

The Humimeter RP6 Moisture Meter for Recycled Paper is designed fast, non-destructive measurement of moisture content in recycled paper and for the detection of moisture spots in recycling paper bales. The RP6 features can be extended with an optional air humidity and temperature sensor in order to measure environmental parameters quickly and efficiently.
Photo Gallery

Features
- Measuring range: 1 to 50% water content (depending on the material)
- Resolution: 0.5% water content
- Eight (8) built-in factory calibrations for most common recycled paper types
- Hold function, automatic dataloging for up to 10,000 values with measuring point report
- Includes USB data outut, supplied with cable and Free Software
- Quickly and highly accurate measurement using a non-destructive method
- Automatic temperature compensation
- Measurement within seconds without prior treatment of samples
- Interface for the connection of optional external sensors
- Menu languages: English, German, Italian, French, Spanish, Russian, many others on request
- Protection class: IP64 - protected against dust and liquid spray
- Optional: portable thermal printer, humidity and temperature sensor, test block
- Supplied with Rechargeable batteries (Li-Ion 1950mAh) and USB Charger
- Made in Austria to the highest standards, CE-certified and backed by 2-Year Warranty
Measuring Procedure
Turn on your RP6 moisture meter by pushing the black button on the handle of the device. Choose your calibration (e.g. 350 recycling paper) and press the measuring plate against the paper bale. The display immediately shows the water content and temperature. The measuring values can be stored in the humimeter RP6 memory, additional information like suppliers data and notes can be added. The stored values can be sent to a PC if required. Measurements can be printed immediatley via the optionally available portable printer. For measurement of other relevant process parameters, a humidity and temperature sensor can be connectedSpecifications
| Measuring Range | 0 to 50% water content | | Resolution | 0.5% water content | | Data Logger | Up to 10,000 measurements & report | | Data Output | USB (supplied with data transfer cable and software on thumbdrive) | | Measuring depth | max. 500 mm | | LCD Display | 128 x 64 matrix display, with backlight | | Battery Type | Li-Ion 1950mAh Re-Chargeable Batteries (USB Charger included) | | Battery Life | 40 hours (continuous use) | | Temperature Compensation | Automatic (Displayed in C or F as preferred) | | Factory Calibrations | Eight (8) built-in factory calibrations for most common recycled paper types | | Current Consumption | 40mA (with backlightlight) | | Operating Temperature | 0 to +50C (32 to 122F) | | Storage Temperature | -20 to +60C (-4 to 140F) | | Dimensions | 620 mm x 100 mm x 147 mm (24.4" x 4" x 5.8") | | Weight | 1 kg, approx. (with batteries) / 2.2 Lbs | | Warranty | 2-Years | | Menu Languages | English, German, Italian, French, Spanish, Russian, many other on request |
Complete Kit
The RP6 is delivered as a complete kit including: - RP6 Recycling Paper Moisture Meter
- USB cable
- LogMemorizer PC Software (supplied on thumdrive
- Rechargeable batteries (Li-Ion 1950mAh)
- USB Charger
- Plastic carrying case
